Doubts about Hosts monitor

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Doubts about Hosts monitor

    Hi all,
    i have some questions/problems with administrate panel from oreon:

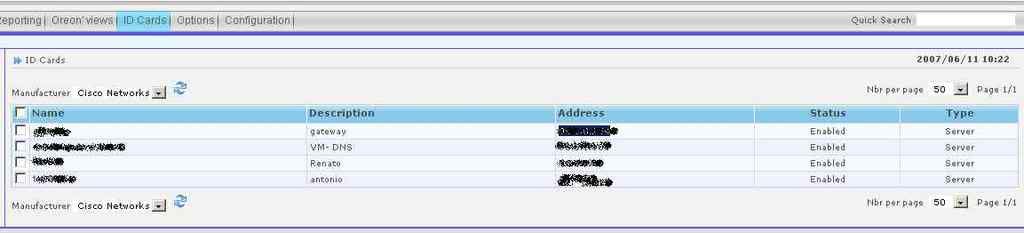

    1 - I already have add many hosts on oreon for monitoring, see my "id cards" tab:


    this hosts are ok, if i click then, i can see installed programs(only windows), process, host details, etc.

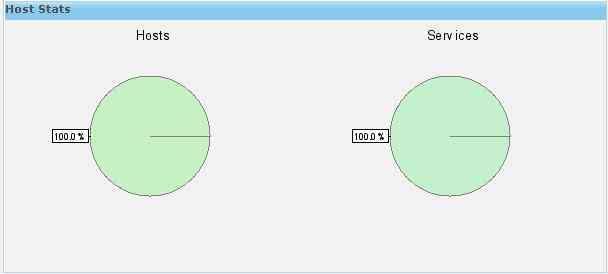

    At The initial page on oreon (Home tab), i have two graphs like this image:


    But at Hosts Status table (at the right top) i have only two hosts and 7 proccess:

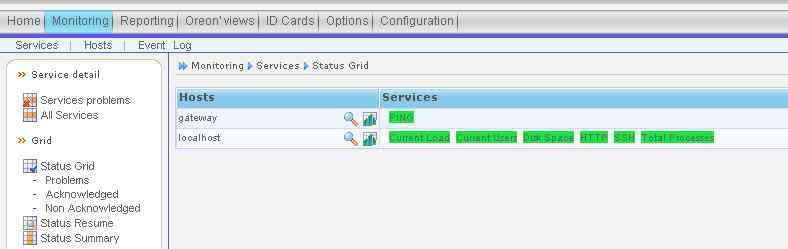

    And at the monitoring tab, show hosts that are monitoring, but the hosts that i have manually add do not appears.


  • #2
    And have no graphs for hosts:







    How do i put my hosts on the monitor and how do i create graphs??


    ** sorry for double post, its because they permits only 4 images for post.

    Comment


    • #3
      Are you sure your nagios config is correctely pushed to nagios by oreon and restarted by oreon correctely ?

      Are you using ODS to get graph or old method like check_graph or perfparse ?
      First be sure that your data are gathered correctely.
      Intel(R) Xeon(TM) CPU 3.4GHz - MemTotal : 1034476 kB
      Centreon 2.4.1 - Nagios 3.2.1 - Nagios Plugins 1.4.15 - Manubulon Plugins tuné
      Fedora Core 5 - 2.6.20-1.2320

      Comment


      • #4
        Originally posted by DonKiShoot View Post
        Are you sure your nagios config is correctely pushed to nagios by oreon and restarted by oreon correctely ?
        DonKiShoot,
        i install oreon in Debian 4.0 etch based on this article:
        http://wiki.oreon-project.org/index....1.4-DebianEtch

        after this i start nagios and ods.

        if i make comand navios -v configfile i see this:

        Code:
        oreon:~# nagios2 -v /etc/nagios2/nagios.cfg

        Nagios 2.6
        Copyright (c) 1999-2006 Ethan Galstad (http://www.nagios.org)
        Last Modified: 11-27-2006
        License: GPL

        Reading configuration data...

        Running pre-flight check on configuration data...

        Checking services...
                Checked 7 services.
        Checking hosts...
                Checked 2 hosts.
        Checking host groups...
                Checked 5 host groups.
        Checking service groups...
                Checked 0 service groups.
        Checking contacts...
                Checked 1 contacts.
        Checking contact groups...
                Checked 1 contact groups.
        Checking service escalations...
                Checked 0 service escalations.
        Checking service dependencies...
                Checked 0 service dependencies.
        Checking host escalations...
                Checked 0 host escalations.
        Checking host dependencies...
                Checked 0 host dependencies.
        Checking commands...
                Checked 116 commands.
        Checking time periods...
                Checked 4 time periods.
        Checking extended host info definitions...
                Checked 1 extended host info definitions.
        Checking extended service info definitions...
                Checked 0 extended service info definitions.
        Checking for circular paths between hosts...
        Checking for circular host and service dependencies...
        Checking global event handlers...
        Checking obsessive compulsive processor commands...
        Checking misc settings...

        Total Warnings: 0
        Total Errors:   0

        Things look okay - No serious problems were detected during the pre-flight check
        oreon:~#

        Originally posted by DonKiShoot View Post
        Are you using ODS to get graph or old method like check_graph or perfparse ?
        First be sure that your data are gathered correctely.
        I don`t know this part, but i think that oreon have their own function to generate graphs, this is correctly?

        but i do:
        Code:
        oreon:~# /etc/init.d/ods start
        Starting ODS Collector : ods_daemon
        Error : /usr/local/oreon/ODS/var/ods.pid already Exists.
        oreon:~#

        Comment


        • #5
          I can't help you much as i don't use ODS for the moment and don't know how it works.

          As i know, it stores in database some info and put other in rrd file.
          Intel(R) Xeon(TM) CPU 3.4GHz - MemTotal : 1034476 kB
          Centreon 2.4.1 - Nagios 3.2.1 - Nagios Plugins 1.4.15 - Manubulon Plugins tuné
          Fedora Core 5 - 2.6.20-1.2320

          Comment


          • #6
            Originally posted by DonKiShoot View Post
            I can't help you much as i don't use ODS for the moment and don't know how it works.

            As i know, it stores in database some info and put other in rrd file.


            What do you use to generate graphs???

            Comment


            • #7
              Originally posted by Grejao View Post
              What do you use to generate graphs???
              Old perfparse but i'm not satisfy, i'm waiting for 1.4 stable with ODS.
              Intel(R) Xeon(TM) CPU 3.4GHz - MemTotal : 1034476 kB
              Centreon 2.4.1 - Nagios 3.2.1 - Nagios Plugins 1.4.15 - Manubulon Plugins tuné
              Fedora Core 5 - 2.6.20-1.2320

              Comment


              • #8
                Originally posted by DonKiShoot View Post
                Old perfparse but i'm not satisfy, i'm waiting for 1.4 stable with ODS.

                I install Oreon 1.4 that was release on 29/03/2007, see here:
                http://www.oreon-project.org/download.html
                http://www.oreon-project.org/changelog.html

                Has ODS 1.4 included on Oreon 1.4??

                I understand how to create monitors. First I need to monitor hosts from Nagios, but i can`t create it from web interface, i need to create monitors on nagios editing config files.
                to add hosts on oreon i go to "configuration" tab , "Hosts" option and add the host, after this i go to "id cards" tab and do manual update. Ok, after this i can see my hosts on "id cards" and their snmp informations, like "storage device", "description", "Running Processus", "software installed".


                I would like to put my oreon to monitor my hosts, if some problem occurrs they send me mail and alarm (red) on the oreon web interface.
                Put oreon to generate graphs for the process, net traffic, load, memory, and others.
                And integrate oreon with Ntop.

                Comment


                • #9
                  hey guys,

                  don't know what you're discussing that long. Nagios told you what the problem is:
                  "Running pre-flight check on configuration data...

                  Checking services...
                  Checked 7 services.
                  Checking hosts...
                  Checked 2 hosts.
                  Checking host groups..."

                  So, you have configured hosts and services and all the stuff, but you didn't told Oreon to WRITE the configuration in the directory where nagios needs them.

                  So: Go to Configuration->Nagios. Be sure, that you've choosen the right buttons:
                  Export Options
                  Generate Files Yes

                  Run Nagios debug (-v) Yes
                  Move Export Files Yes
                  Restart Nagios Yes
                  Reload

                  When you run the debug only (without Move Export Files to YES), then Oreon write the config to an other directory (oreon/generateFiles) and runs the nagios command to check it.
                  If you change the "Move Export Files" to YES, then Oreon will write your config to the nagios directory and that's it. If you want nagios to read in the NEW config, you have to choose the "Restart Nagios" Option.

                  And one thing is primitive:
                  when nagios runs with a config of a few hosts, then Oreon can only show you graphs of these few hosts.
                  To get more info about your running ODS, please have a look at your error_file and log_file of ODS and feel free to post them here ;-)

                  Greets,

                  Ira

                  Comment
